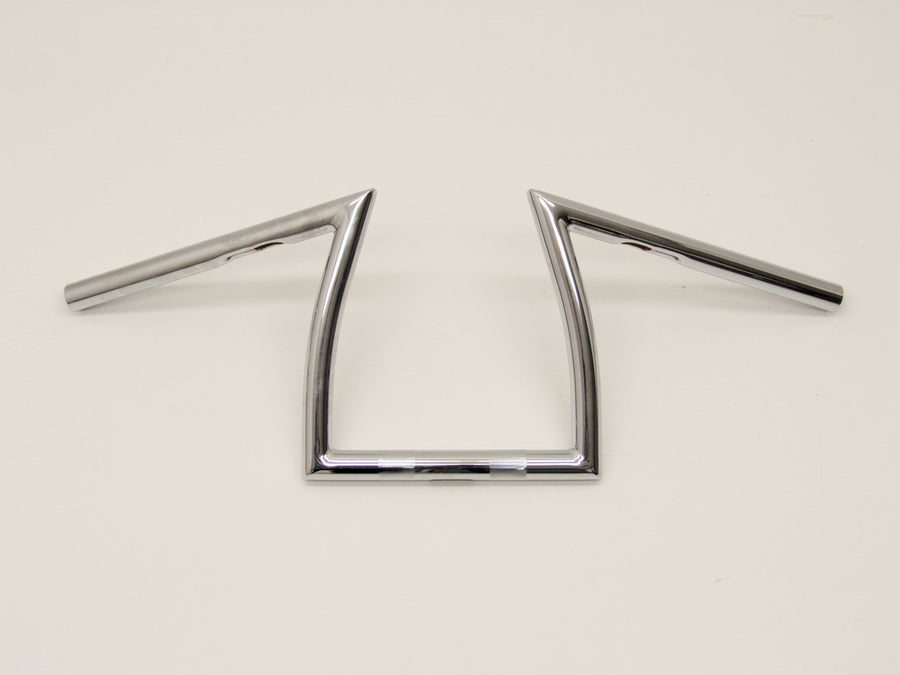

Motorcycle driver Ø 25 - Z -Lenker 685 mm wide

Z-Lenker 685 mm wide

The motorcycle driver from Fehling, model Ø 25, is characterized by a width of 685 mm and is suitable for various machine models. The construction of this handlebar takes into account modern requirements with a notch and a triple interior tour for electrical cables, which simplifies installation and maintenance.

Technical details

• Diameter: 25.4 mm (1 inch)
• Width: 685 mm
• Height at the outer end: 245 mm
• Depth: 115 mm backwards
• Height at the end of the handle: 140 mm
• Cutting size of the pipe outer edges: 250 mm
• Interior above: 120 mm

Variable dimensions at assembly

• Height: Vary between 215 mm and 245 mm
• Depth (pullback): Vary between 75 mm and 135 mm

Additional dimensions

• Maximum grip length: 245 mm
• Maximum clamping width: 180 mm
• Width width (outside): 120 mm / 60 mm

This handlebar was specially developed to ensure optimal fit and functionality. The dimensions can vary depending on the specific assembly and model, which must be taken into account when installing.
