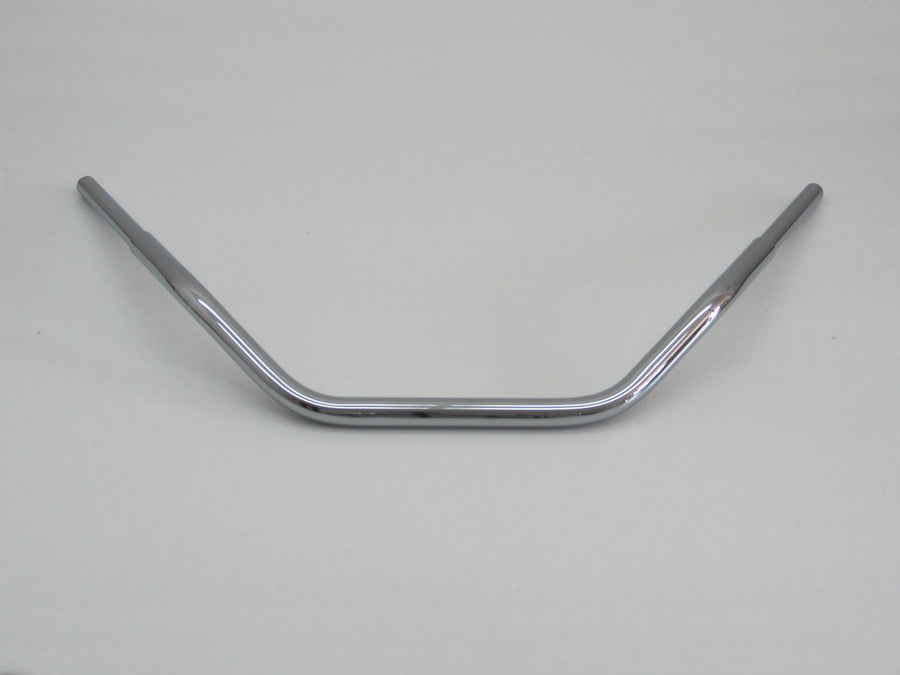

Motorcycle driver Ø 31 - handlebar for chopper and cruiser 930 mm wide

Product details on the motorcycle driver from Fehling

The motorcycle steering model Ø 31 from Fehling has been specially developed for chopper and cruisers. This handlebar is characterized by a width of 930 mm and is designed for precise handling and control while driving.

Technical specifications

• Diameter of the handlebar: 31.75 mm (1 1/4 inches)
• Diameter of the handle: 25.4 mm (1 inch)
• Care for electrical cables: Available, supports a clean cable routing
• Cable guidance: 3-hole system for optimized laying of the cables inside the handlebar

Measure

The dimensions of the handlebar vary depending on the assembly position and handlebar setting. Here are some basic dimensions:

• Total width: 930 mm
• Height at the outer end: 185 mm
• Depth: 225 mm
• Height at the end of the handle: 410 mm
• Width on the pipe cut: 345 mm

Additional dimensions in the cultivation configuration:

• Height: 110 mm
• Depth (pullback): 420 mm
• Maximum grip length: 200 mm
• Maximum clamping width: 230 mm

This handlebar is known for its robust construction and precise production, which ensure increased security and comfort while driving. The specific configuration without knurling ensures a smooth surface and improves the overall experience.
